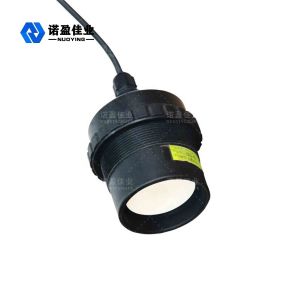

IP65 Ultrasonic Level Gauge For Sludge 24VDC Maintenance Free

  • 1
  • 2

Brand Name : Nuoying JIAYE

Model Number : NYCSUL-502

Certification : Explosion proof certificate

Place of Origin : China

MOQ : 1 set

Price : $129.00-$300.00

Payment Terms : T/T

Supply Ability : 300 units a month

Delivery Time : 5-8 working days

Packaging Details : 30cm×25cm×20cm

Measuring range : 20m

Measurement accura : 0.25%FS to 0.5%FS

Application : Acid ,oil ,diesel ,water Liquid or solid level measurement

Power supply : 24VDC or 220VAC, 12VDC power supply can be customized

Process pressure : Normal pressure

Display : LCD

Shell material : Polypropylene/Aluminum

Protection class : IP65,IP67

Contact Now

Maintenance-free Level Measurement Ultrasonic Level Transmitter for Sludge

Waterproof ultrasonic fuel level sensor price are used in a wide variety of applications to detect the location of level in a process.

Waterproof ultrasonic fuel level sensor price are used in a wide variety of applications to detect the location of level in a process or storage vessel. These switches can be used in virtually any liquid. A complete offering of materials and mounting configurations are available to meet your application needs.

IP65 Ultrasonic Level Gauge For Sludge 24VDC Maintenance Free

Ultrasonic Level Transmitter Technical parameters

Range 0 ~ 15 m
Blind 0.3 m
Accuracy (in air) 0.25% (full scale)
Display resolution 0.01m
Current output

4 ~ 20 ma,1 ~ 5 v 1 ~ 10 v,

RS485

3-way NPN (can be configured to PP pulse output)

Two-way relay (AC: 5 a 250 v DC: 10 a 24 v)
Output Resolution 0.03% of the actual range
Temperature range -40-- +70 Degrees Celsius
Relay Output Upper and lower control
Power supply 12 to 24 VDC or 220 Vac
Parameter settings 3 felt buttons
Temperature compensation Full Range Auto
Instrument material ABS engineering plastics
Installation Flange or bracket
Sound beam angle 8o (3db)
Pressure range 0.04Mp special general 0.5Mp

Ultrasonic Level Transmitter Features

  • Not reliant on chemical properties of the liquid
  • No moving parts
  • Simple installation with no calibration necessary
  • Available in a wide variety of materials and process connections
  • Remote Self-test to verify operation of the electronics and sensor
  • Auto gain control, auto power control
  • over-voltage/over-current protection
